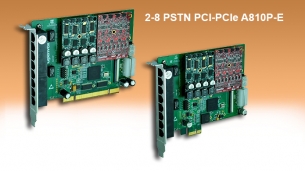

OpenVox A(E)810 Series can be used for connecting analog telephones and analog POTS lines through a PC. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality on both FXO and FXS interfaces in all 8 ports.

A(E)810 Series is a new generation analog card, and AE810 with Octasic® Hardware Echo Cancellation Module on board. With interchangeable quad-FXS and quad-FXO modules, it can eliminate the requirement for separate channel banks or access gateways.

The A(E)810 Series contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

Once the Octasic® DSP module EC2032 is added to the AE810 Series, please make sure you are ready to say goodbye to the poor voice quality and echo echo echo in your phone system. No one will even get a chance to hear that any more! The AE810 Series with Octasic DSP module will support Telco-grade hardware echo cancellation on all channels, up to the card’s maximum configuration in 8 ports with no additional CPU load.

A810 Series works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

    Channel Bank Replacement / Alternative    Small Office Home Office (SOHO) applications    Small and Medium Business (SMB) applications    Gateway Termination to analog telephones/lines

Minimum Hardware Requirement

    800-Mhz Pentium III    128MB RAM    Available PCI-E/PCI Slot

Technical Specifications

    Up to 8 ports through a combination of FXS400 and FXO400 modules    Full-length/Half-length analog card    Up to 2 quad FXS or FXO modules    RJ11 connector    FPGA design, upgradeable firmware onsite

Operating Systems

    Linux (all versions, releases and distributions from 1.0 up)

Certifications

    RoHS Compliant    Certificates: FCC, CE and CS-03

Optional Octasic® DSP Echo Cancellation Module — EC2032

    1024 taps/128 ms tail/channel (on all channel densities)    Octasic® music protection    Automatic level control (G.169)    Field upgradeable algorithm    V.25 / V.8 answer tone    DTMF as per Q.24    No CPU load as a result of echo cancellation.    Does not increase the physical size of the card, and no additional slot is required    EC2032 (SMEC V1.1) power consumption: 3.83W

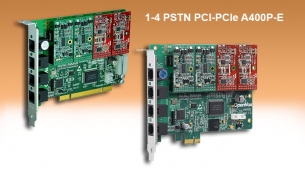

OpenVox A400 Series can be used for connecting analog telephones and analog POTS lines through a PC. It supports combinations of FXS and/or FXO modules for a total of 4 lines.

OpenVox A400 Series delivers great voice quality in the telephony systems. With interchangeable FXS/FXO modules, it can eliminate the requirement for separate channel banks or access gateways.

The A400 Series contains 4 module banks. Each bank supports one analog interface. The module banks may be filled with up to 4 FXO or FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

A400 Series works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

    Channel Bank Replacement / Alternative    Small Office Home Office (SOHO) applications    Small and Medium Business (SMB) applications    Gateway Termination to analog telephones/lines

Technical Specifications

    Up to 4 ports through a combination of FXS and FXO modules    4 RJ-11 interfaces on a single PCI bracket    Firmware accelerate I/O access to achieve high stability

Minimum Hardware Requirement

    800-Mhz Pentium III    128MB RAM

Operating Systems

    Linux (all versions, releases and distributions from 1.0 up)

Certifications

    RoHS Compliant    Certificates: FCC, CE and LVD

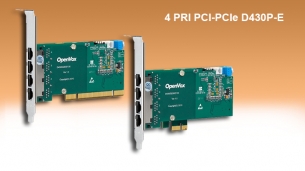

OpenVox D430 Series is now the leading 4 port T1/E1/J1 PCI-E card in the open source industry. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality over T1, E1, and J1 interface.

The D430 Series is an upgrade product of the D410 Series. It’s supposed to be the most advanced 4 port T1/E1/J1 asterisk® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

D430 Series offers an on-board Octasic® DSP-based echo cancellation module. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. The Octasic® DSP-based EC module enables users to eliminate echo tails up to 128ms or 1024 taps across all 128 channels in E1 mode or 96 channels in T1/J1 modes. Further, this module takes advantage of the Octasic® Voice Quality Enhancement to provide superior sound quality on all calls.

D430 Series supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

D430 Series works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications

    Voice-over Internet Protocol (VoIP) Services    Complex IVR Trees    "Meet-Me" Bridge Conferencing    Calling Card Platforms    VoIP Gateways (support SIP, H.323, and IAX)    Legacy PBX/IVR Services    Voice/Data Router (replace expensive routers)    PRI/Switch Compatibility - Network or CPE

Technical Specifications

    4 T1/E1/J1 ports with PCI interface for high performance voice and data applications    RJ48 connector    FPGA design, upgradeable firmware onsite    Power Consumption: 2.6W Minimum, 3.9W Maximum at 3.3 V or 5 V.    Operation temperature: 0°C to 50°C    Dimension: 2U Form factor: 12*6.4*1.8cm

Minimum Hardware Requirement

    800-Mhz Pentium III    128MB RAM

Certifications

    RoHS Compliant    Certificates: FCC, CE and CS-03

PRI Switch Compatibility

    EuroISDN (PRI or PRA) - Q.931/Q.921    Network or CPE    AT&T 4ESS    National ISDN 2    CAS Voice Modes    DMS 100    Lucent 5E

Optional Octasic® DSP Echo Cancellation Module—EC2128

    128ms tail/channel (on all channel densities)    Octasic® Music Protection    Adaptive Noise Reduction    Automatic Level Control (G.169)    Field upgradeable algorithm    V.25 / V.8 answer tone (w/ and w/o phase reversal)    DTMF as per Q.24    No CPU load as a result of echo cancellation.    Does not increase the physical size of the card, and no additional slot is required    EC2128 power consumption: 0.33W/3.5W    Operation temperature: 0 to 50°C
